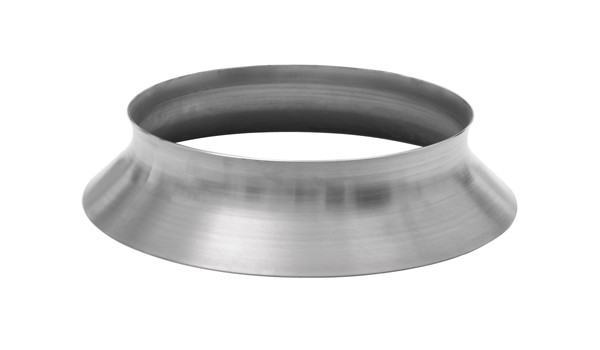

Intake cones for ventilators

The adjacent summary gives an impression of the range of tools we have available to produce intake cones nozzles for your ventilator production.

As a rule we produce cones of steel sheet, aluminium and stainless steel. However, our great flexibility means we are also absolutely able to meet your particular specifications for dimensions and materials, e.g. brass and copper. Our in-house tool making unit will be happy to discuss your needs.

Intake cones for ventilators
Intake cones for ventilators

- The dimensions d1, D and s are variable.

Pos. ø d1 ø d2 ø D bis… r H s Tolerances
d1 only -		 Tolerances
D ±		 Tolerances
H ±
1 - - - - – - - - -
2 107 102 190 20 – 2,0 1,0 1,0 2,0
3 121 116 190 20 – 2,0 1,0 1,0 2,0
4 136 130 310 22 – 2,0 1,0 1,0 2,0
5 153 147 240 25 – 2,0 1,0 1,0 2,0
6 173 169 290 28 – 2,0 1,0 1,0 2,0
7 194 187 330 30 – 2,0 1,0 1,0 2,0
8 219 212 370 32 – 2,0 1,5 1,5 2,0
9 245 238 420 34 – 3,0 1,5 1,5 2,0
10 276 267 465 40 – 2,5 1,5 1,5 2,0
11 310 299 510 45 – 3,0 1,5 1,5 2,0
12 348 336 575 50 – 3,0 1,5 2,0 2,0
13 391 376 630 56 – 3,0 1,5 2,0 2,0
14 440 423 720 63 – 3,0 1,5 2,0 2,0
15 494 474 805 71 – 3,0 1,5 2,0 2,0
16 555 532 910 80 – 4,0 2,0 2,5 2,0
17 624 597 1015 90 – 4,0 2,0 2,5 2,0
18 701 670 1110 100 – 4,0 2,0 2,5 2,0
19 787 752 1265 112 – 4,0 2,0 2,5 2,0
20 884 843 1370 126 – 4,0 2,0 3,0 2,0
21 990 952 1385 140 – 5,0 2,0 3,0 3,0
22 1106 1062 1485 160 – 5,0 2,5 3,0 3,0
23 1260 1210 1630 180 – 5,0 2,5 3,0 3,0
24 1370 1320 1850 200 – 5,0 2,5 3,0 3,0

s = starting material thickness
